71 71 HE351CW Race, Shop Truck Build

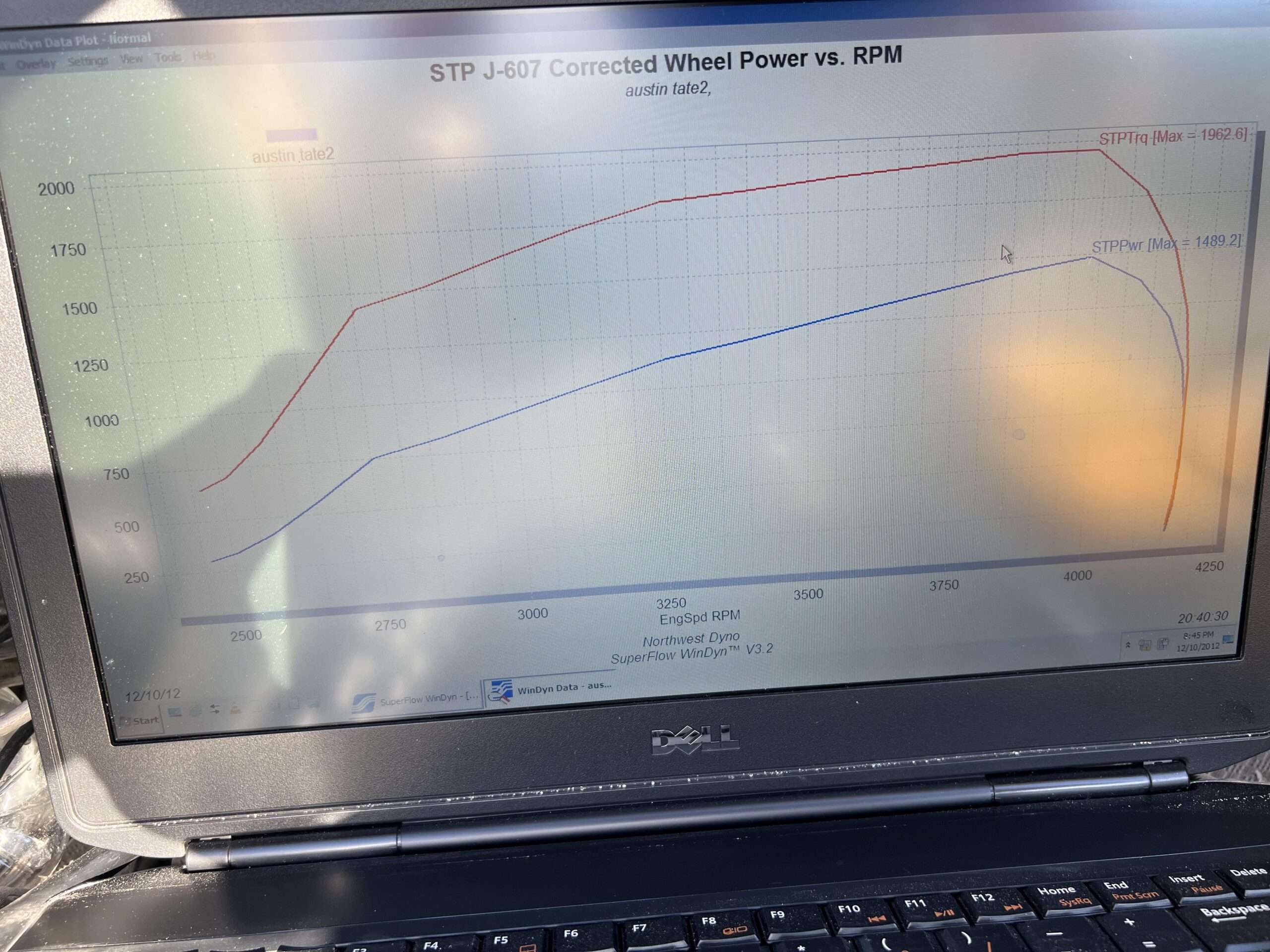

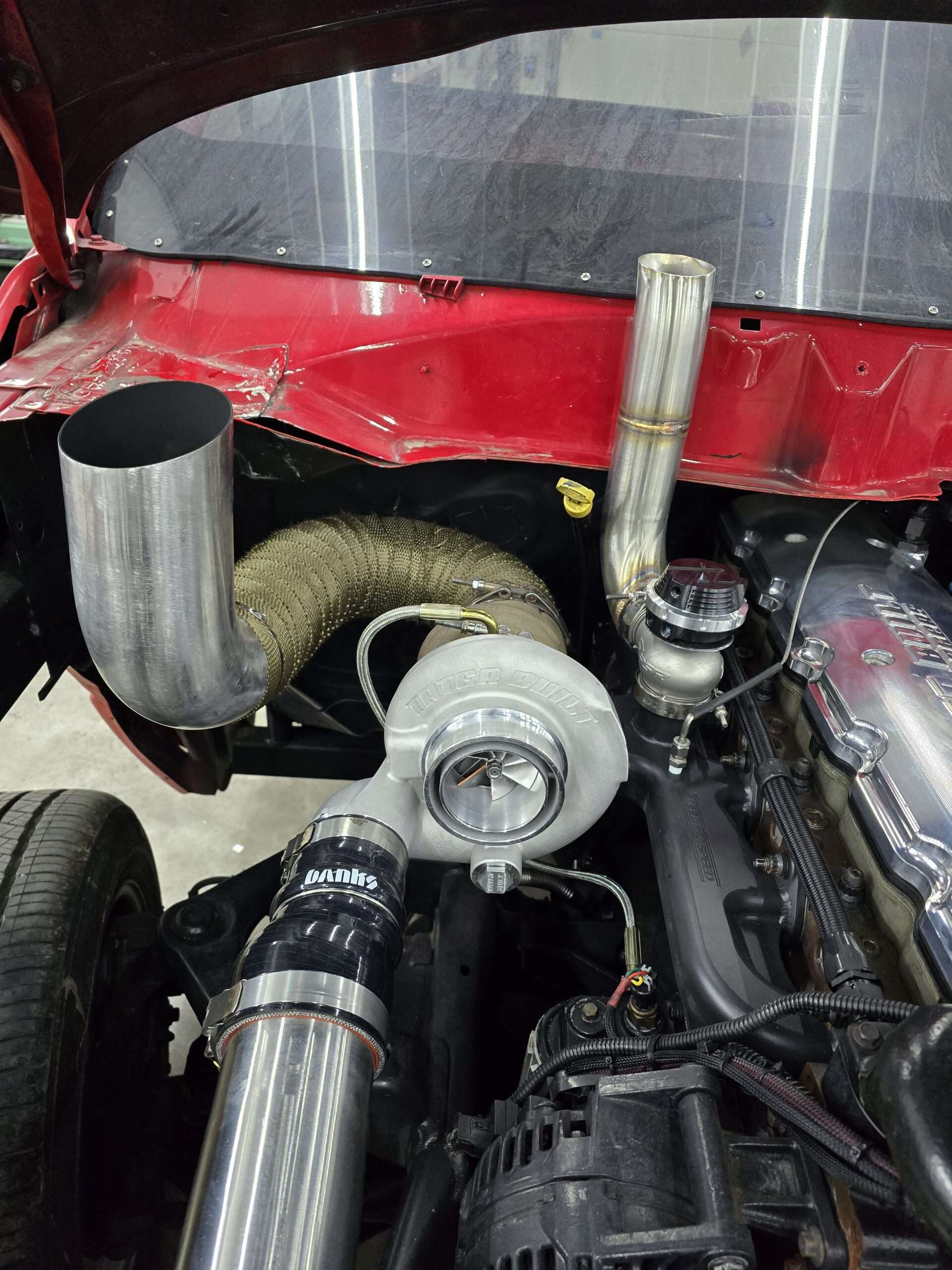

This is our shop truck build. Race/sled pull competition build. This is a exact copy of our setup that we use for high competition use on our shop truck that is right close to 1000hp to the tire's on fuel only and can safely be sprayed to 1250-1300hp without any overpseed issues on the turbocharger side. This setup makes 38-42psi of boost on fuel only and is as reliable as it gets and it will out perform anything else out there when over all setup is all correct. This turbo setup is on top and will not be out performed. we have sprayed this turbocharger with a NX375 solenoid with a 315 thousandths mega jet kit. That right close or above 500hp worth of nitrous on 900lbs of bottle pressure. The turbo was said to not handle it but took it with out a issue. could you do it 50 times. probably not. could you do it with a 225 thousandths jet 50 times. yes you could. so with this setup it will be super hard to ever abuse so you will get a whole season of competition without a issue!!! If all options are selected this is what it gets you! This gets our 71 71 he351cw Race series 4blade turbocharger. Steed Speed T3 2nd gen manifold with 45mm external wastegate. This gets our manifold install stud kit and gasket kit. This gets our PSR 45mm wastegate set at 38-40psi spring pressure. This setup comes with our Cross guard Turbine safety guard that is dual 4.4 Vbanded or you can weld 4" pipe to it. This kit comes with our flexable drain tube. factory style feed line and fittings. You will need to then build intercooler pipe and a downpipe. we will offer those in the future as well. You wanna win and must stay stock appearing.  This is your setup and it will do the job!
